Automatic Digital Penetrometer

InfraTest

Automatic Digital Penetrometer Image 1
1 / 1
Automatic Digital Penetrometer Thumbnail 1

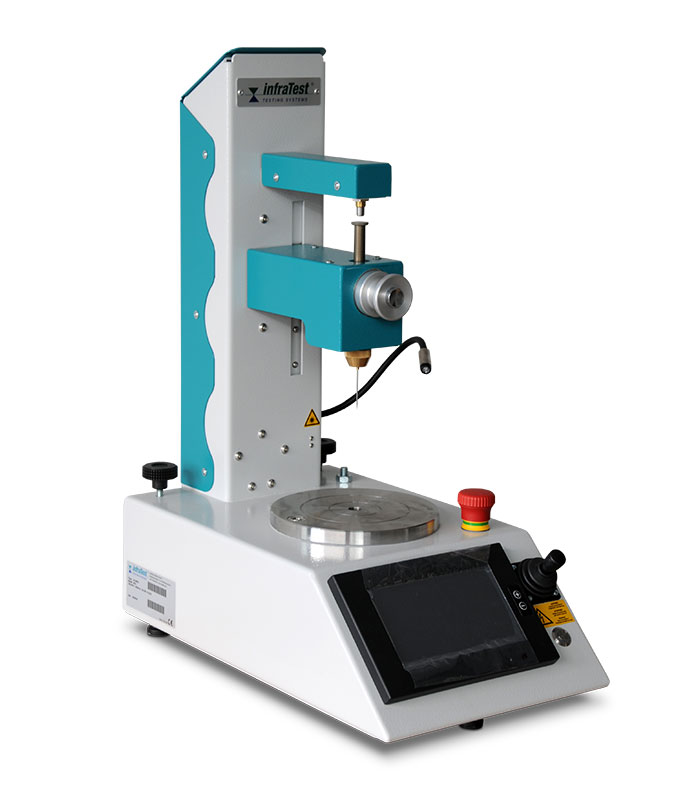

The InfraTest Automatic Digital Penetrometer is used for the determination of the needle penetration. The path a standard needle penetrates in the sample under standardized conditions (load, time, temperature) is measured. The penetration depth of the needle is determined with an electronic measuring system, which is separated from the plunger during the test. This and the free guidance of the plunger the influence to load and friction is virtually eliminated. Before the start of each test, the measuring system is automatically referenced. Run-up and touch down of the needle are carried out automatically via measurement system. Manual joystick mode is also possible. Then, the plunger is enabled by an automatic device and blocked again after the testing period. The test result is displayed on the graphical touch display. The plunger can be removed easily to calibrate its weight.

Additional accessories such as penetration needle 20-20711, preheating bath etc. are also required to carry out the test.

Click here to visit the product page.

Bituminous Material TestingRoad construction testingNeedle penetrationBitumen
