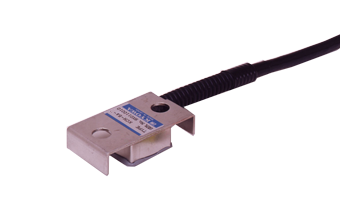

KCH Series Foil Strain Gages with Protector
Kyowa
The unique design of KCH Series Foil Strain Gages with Protector simplifies gage bonding, wiring and moisture-proofing work in the field. In addition, the metal case protects the strain gages and significantly improves reliability compared with conventional gages. It is made up of polyimide and resistive element of CuNi alloy foil. Using stud bolts and adhesive, the gages can be mounted to the bottom and side plate of tank for strain measurement, to a hopper or tank for weight measurement, to the shaft of a truck for tare weight measurement or in any similar applications where the gages need to be protected against moisture, water or small stones. It is able to withstand strain limits of approximately 1.0% at normal temperature and a fatigue lives at normal temperature of up to 1.2x10^6 (±1000μm/m) times.
