KHCX Encapsulated Strain Gages

Kyowa

KHCX Encapsulated Strain Gages Image 1
1 / 1
KHCX Encapsulated Strain Gages Thumbnail 1

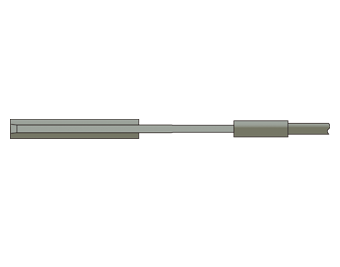

KHCX encapsulated strain gages/gauges are hermetically sealed. They consist of a sensing part and a cable to transmit output signals from the sensing part. The sensing part is composed of a metal tube and a flange. The highly heat-resistant metal tube has strain-gage elements and insulation material sealed in. The flange is spot-welded to the measuring targets. The key feature is it enables static/dynamic strain measurement at 25ºC up to 950ºC, the world's higest level. To minimize thermally-induced apparent strain, the half bridge is configured with active and dummy gages. It also has an applicable linear expansion coefficients (×10-6/℃) of 11 and 13.

Click here to visit the product page.

Strain GaugeHigh temperatureWeldable
